The clamp system consists of end clamps and middle clamps to connect the module frame to the support rail. The clamps, as an integrated clamping system, change the structural properties of the aluminum channel, making it significantly stronger. This design allows solar modules to be mounted at a lower profile than the roof, resulting in a more aesthetically pleasing installation. The middle clamp and middle holder are specially designed, extruded and manufactured for each specific module frame. Innovative clamping systems provide inward tension in the module frame that secures the laminate to the frame. Channel nuts slide into place easily to hold end clamps and center clamps.

You need two middle clamps for each of your panels and two end clamps for each of your rows. You can fix the rail component to the metal roof using 3 standard metal roofing screws. Then you can mount the middle clamp or end clamp on your standard solar panel.

• Typically mounted on pitched roofs.
• Each system is designed and load tested up to 50 lb/sq. (125 mph wind equivalent per 2007 CBC / 2006 IBC to ensure safety and quality)
• Mid Clamp (also known as mid panel holder & mid panel finisher) is designed for compatibility with a mini rail and is used to clamp solar panels between two solar modules to minimize the effects from wind or any other vibration.
• Mid Clamp (also known as mid panel holder & mid panel finisher) is designed for compatibility with a mini rail and is used to clamp solar panels between two solar modules to minimize the effects from wind or any other vibration.
• The most cost-effective and easy-to-install rail mounting system.
• Aluminum and Stainless Steel components are used for corrosion resistance and strength.
• Gives an aesthetic appearance.

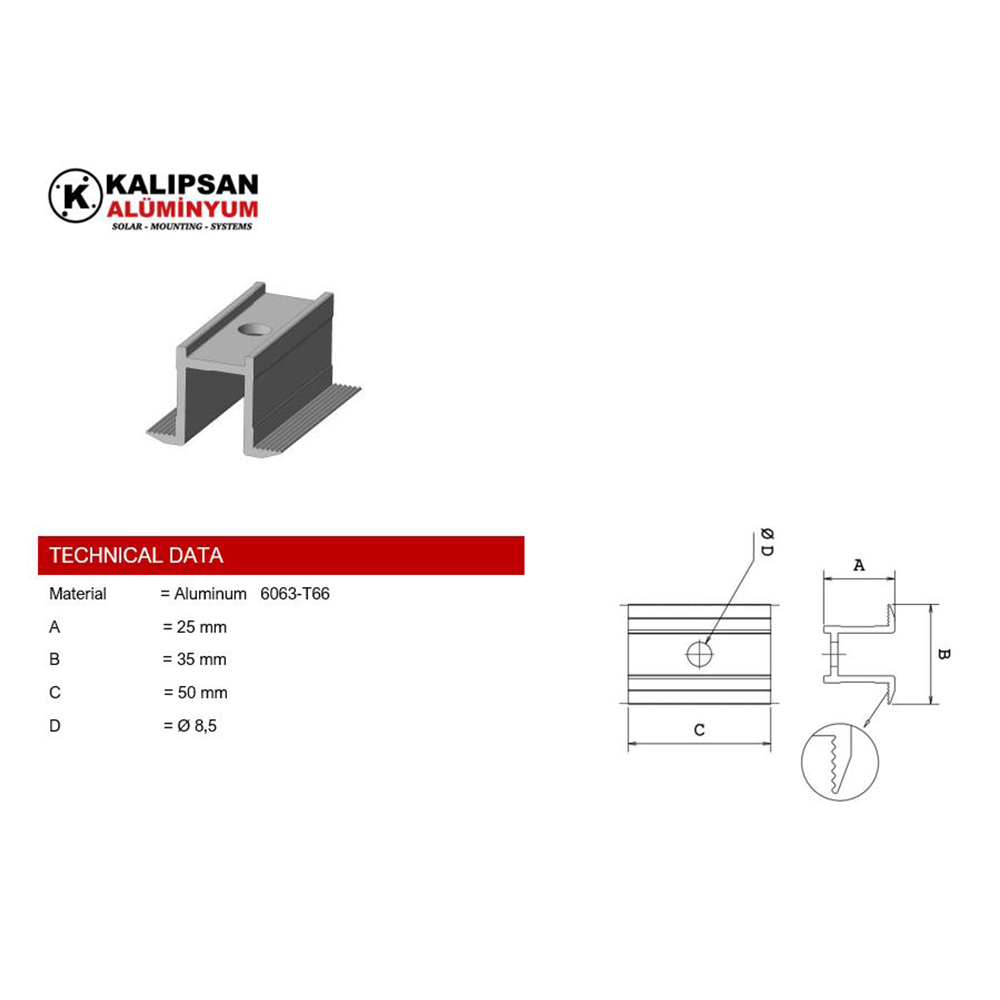

• Material: Aluminum
• 6063-T66
• L=50mm
• Suitable for all solar solar panels.
